Main PCB upgrade kit for the Sam4s Titan 260 POS terminal

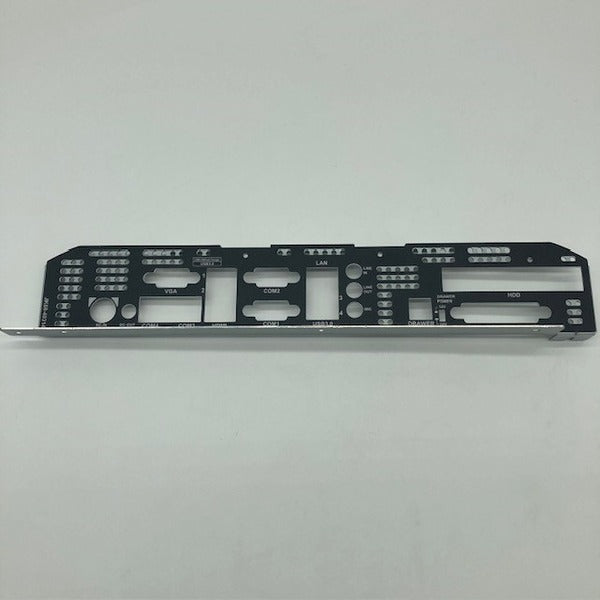

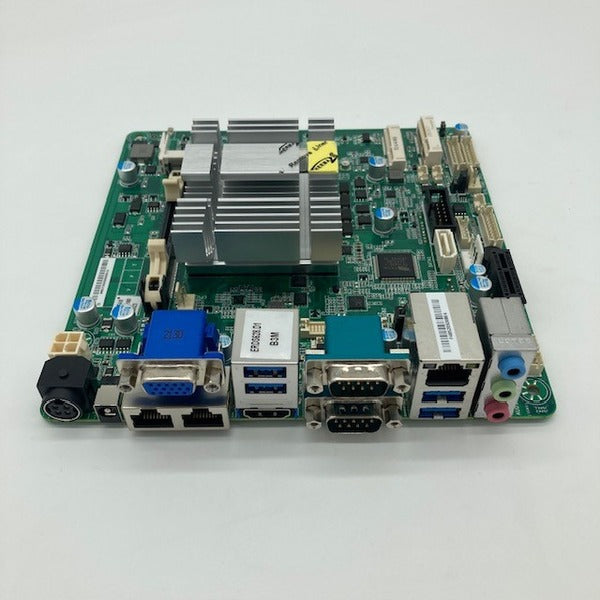

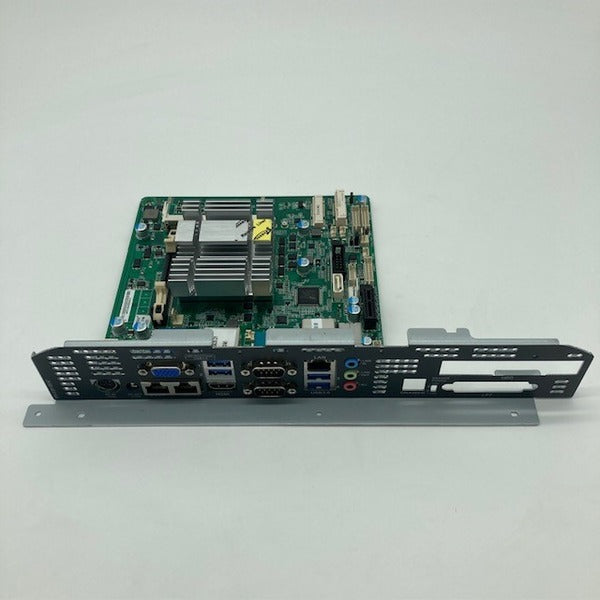

Kit includes a new Titan 260 Main PCB and I/O bracket

Fits into a Sam4s Titan 160 POS terminal to upgrade specification to a Sam4s Titan 260 POS terminal

CPU : Intel Celeron N3160 (Base: 1.6GHz/Burst: 2.24GHz) Without FAN

I/O Interfaces:

COM(Serial) Port : D-SUB 9P x 2Ports / RJ-45 x 1

Port 5V / 12V or RI outputs through COM 1. 2. 3(BIOS setup)

PARALLEL Port : D-SUB 25P x 1Port

USB Port : USB 2.0 back x 2Ports / USB 3.0 IO x 2Ports

Ethernet Port : 10M / 100M / 1Gb LAN RJ-45 x 1

Port VGA Port : D-SUB 15P x 1

Port Audio Port : Line-out x 1Port

DC-OUTPUT Port : 12V DC-OUT 2.5Φ x 1Port

DDR RAM supplied separately

Please remove the protective film on the thermal transfer pad before fitting

Please note: Once fitted into a Titan 160 POS terminal the relevant drivers and OS would need to be reinstalled and SSD reimaged.
