Replacement Main PCB for the Sam4s Titan S560 POS terminal

CPU : Intel Celeron J6412 2.00GHz(up to 2.60GHz) Without FAN

I/O Interfaces:

COM(Serial) Port : D-SUB 9P x 2Ports / RJ-45 x 1Port
5V / 12V or RI outputs through COM 1, 2, 3(BIOS setup)
USB 3.0 IO x 4Ports
Ethernet Port : 10M / 100M / 1Gb LAN RJ-45 x 1Port
HDMI Port : 1Port
Audio Port : Line-out x 1Port
DC-OUTPUT Port : 12V DC-OUT 2.5 x 1Port

DDR RAM supplied separately

Please remove the protective film on the Blue thermal transfer pad before fitting

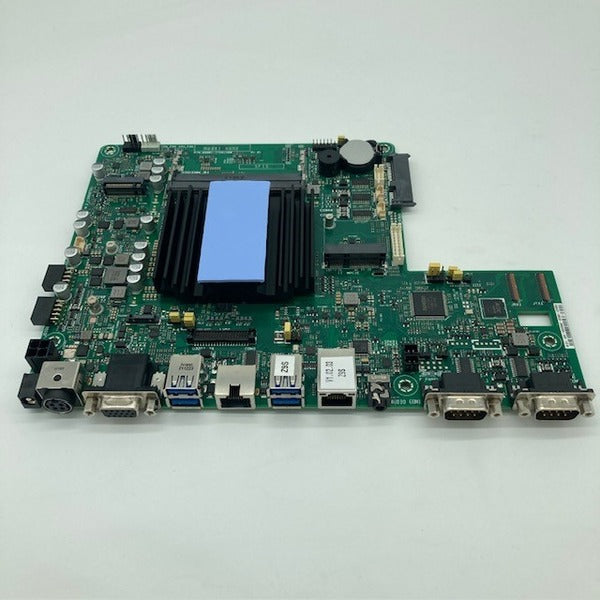

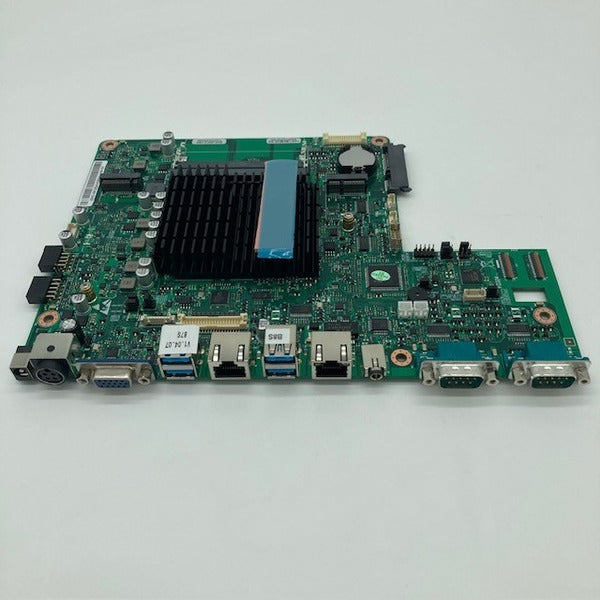

Please note: Images show both the ASUS and REALBOM versions of the PCB, default image is the REALBOM type. The PCB's are interchangeable between the 2 versions, however, if you do swap from one manufacturer to another the relevant drivers and OS would need to be reinstalled.
